OVERVIEW

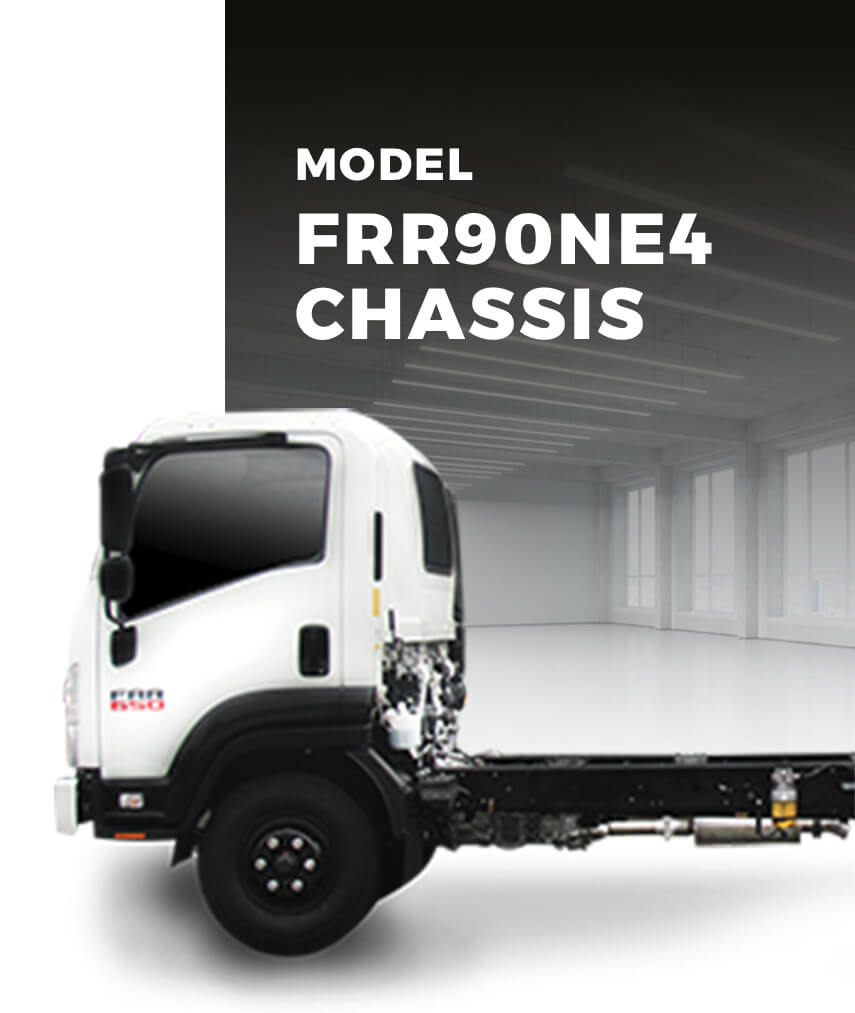

model ISUZU Truck - FRR90NE4A - Chassis

Gross vehicle mass 11,000 (kg)
Overall Dimension 8,420 x 2,280 x 2,540 (mm)
Max. power 190 (140) / 2600 (Ps(kW) / rpm)
Emission EURO 4
Manufacturers Name Công ty TNHH Ô Tô Isuzu Việt Nam
Manufacturers Address 695 Quang Trung, Phường 8, Quận Gò Vấp, Tp.Hồ Chí Minh
Origin Việt Nam
Suggested retail price 887,300,000 VNĐ

* Applied for cabin chassis. (Price is included VAT)

ENGINE

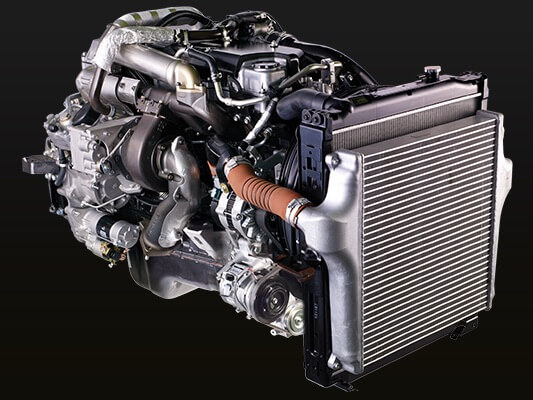

Powerful common rail engine

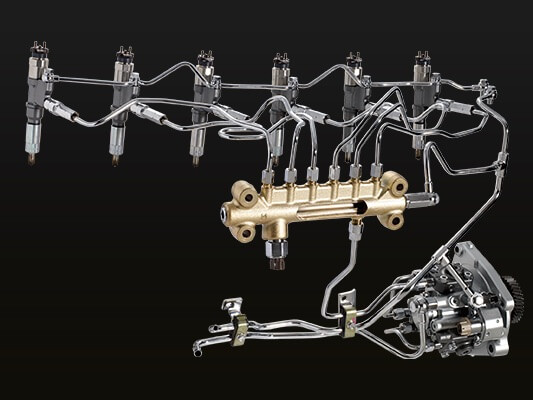

High-pressure common rail injection system

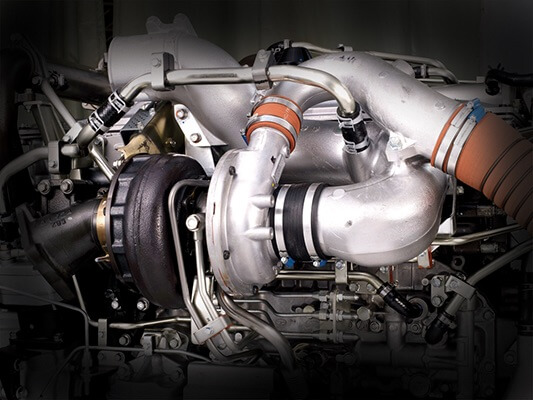

Variable geometry turbo system

performance

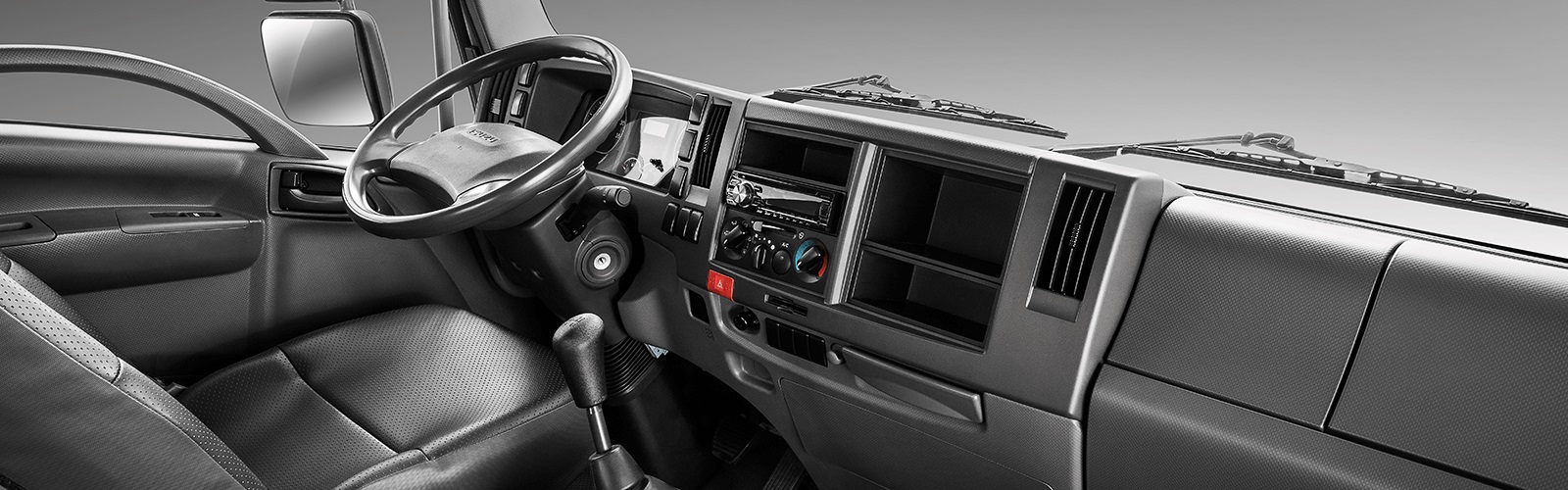

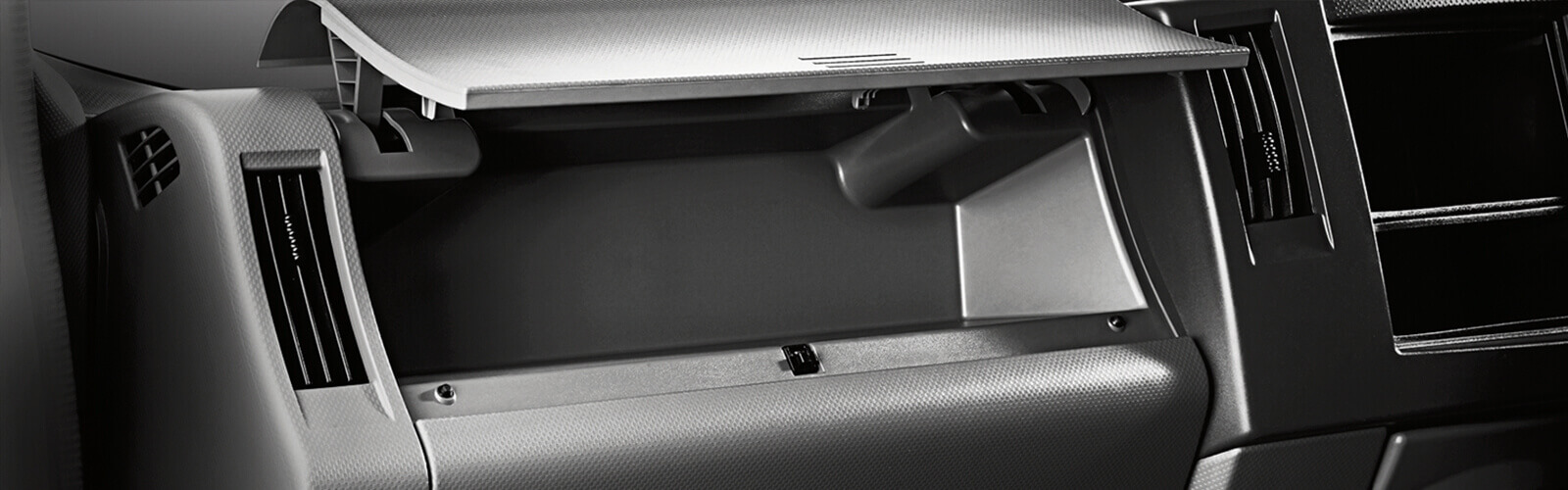

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
STANDARD EQUIPMENTS
Gross vehicle mass kg 11,000
Kerb mass kg 3,255
Number of seats person 3
Fuel tank liter 200
Overall Dimension (OAL x OW x OH) mm 8,420 x 2,280 x 2,540
Wheelbase (WB) mm 4,990
Front – Rear tread (AW / CW) mm 1,790 / 1,660
Ground clearance (HH) mm 210
Front – Rear overhang (FOH/ROH) mm 1,150 / 2,280
Model 4HK1E4CC
Type Common rail, turbo – intercooler
Emission standard EURO 4
Displacement cc 5,193
Bore and Stroke mm 115 x 125
Max. power Ps(kW) / rpm 190 (140) / 2,600
Max. torque N.m(kgf.m) / rpm 513 (52) / 1,600~2,600
Transmission MZZ6W
6 Forward & 1 Reverse
Final gear ratio 5.125
Max. Speed km/h 97
Gradeability % 32
Steering system Recirculating ball with hydraulic assisted
Suspension system front – rear Dependent, leafspring, shock absorber
Brake system front – rear Air-over hydraulicdual circuilt
Tire size front – rear 8.25-16 18PR
Generator 24V-50A
Battery 12V-70AH x 2
  • 2 sun visors driver & co-driver

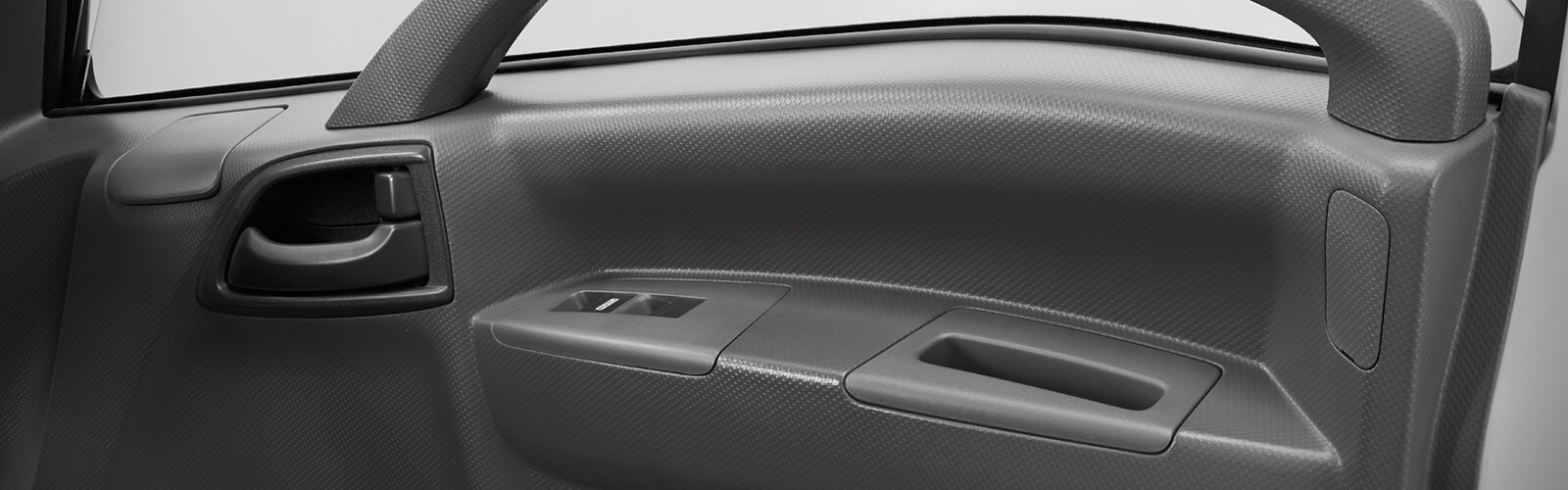

  • Power window & central door lock

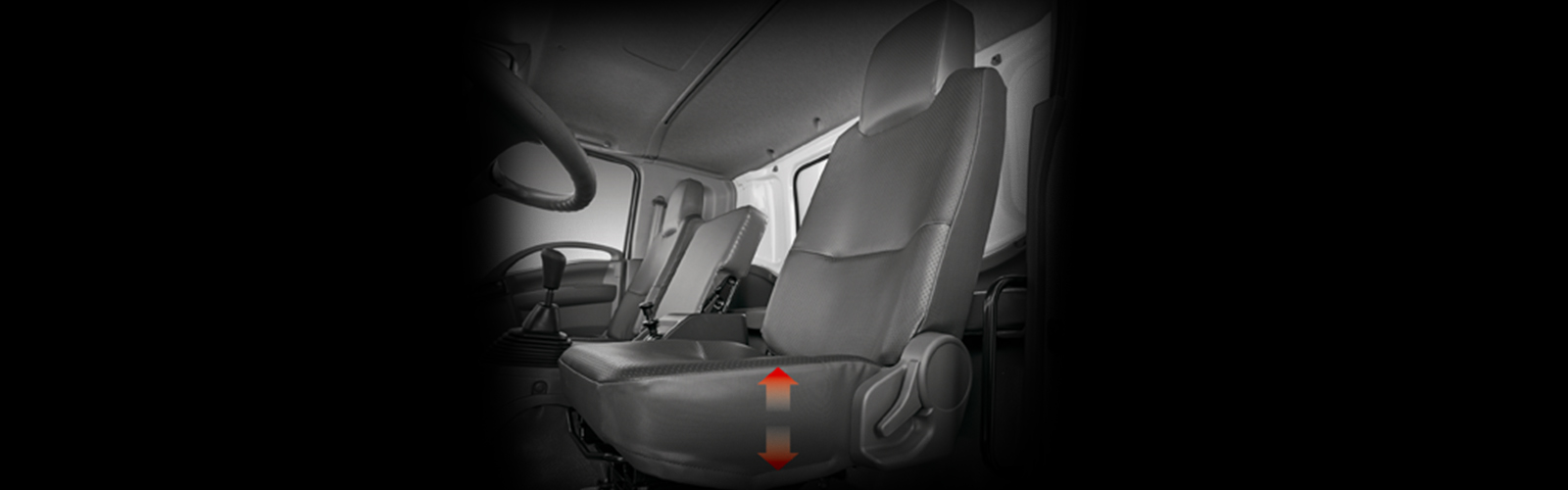

  • Air suspension for driver seat
  • Inside guard bar
  • Cigar lighter
  • Air conditioner

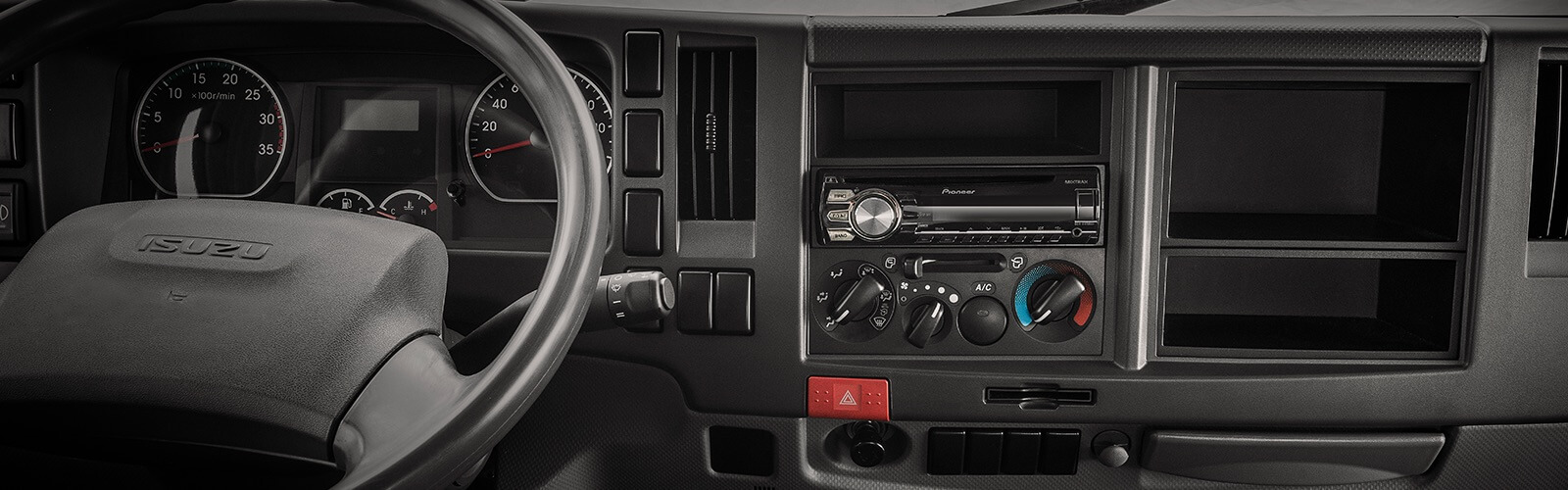

  • USB-MP3, AM-FM radio
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and defroster
  • Exhaust brake
  • Fog lamps
